Aerial Platform SOCAGE ForSte 18ATi

Plataforma aérea SOCAGE ForSte 18ATi
max altura trabajo 1
MAX BASKET FLOOR HEIGHT

18,0 m

rotacion torreta 2
TURRET ROTATION

360º

stabilizzatori
OUTRIGGERS

4 x A

altura cesta 4
BASKET FLOOR HEIGHT

16,5 m

dimensiones cesta 5
BASKET DIMENSIONS

0,7 x 0,7 x 1,1 m

controles 6
CONTROLS

Hydraulic

alcance lateral 7
MAX OUTREACH

10,0 m

cesta 8
BASKET

Fiberglass

pma 9
GVW

13.000 kg

carga cesta 10
BASKET PAYLOAD

2 x 136 kg

rotacion cesta 11
BASKET ROTATION

90º + 90º (OPTIONAL)

cabrestante 12
WINCH

No

High performance and quality

N

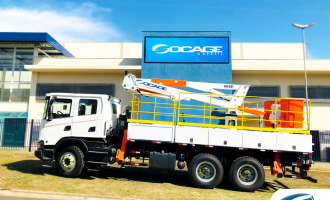

Versatility

N

Simple and safe

N

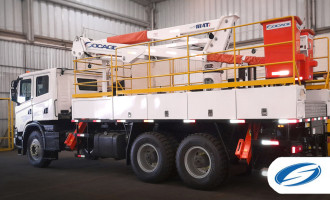

Precision and fluidity in operations

We present the SOCAGE ForSte 18ATi Articulated Telescopic Aerial Platform.

Arm Support Tower:

Produced in high-quality sheet steel, it is composed of a folded main body and electro-welded reinforcements. The rotation is given by a base set of European technology with hydraulic motor and infinite rotation.

Single pantograph bars group

The pantograph system allows for a reduction in the width of the installation, a better distribution of loads, which makes it possible to overcome intermediate obstacles between the equipment and the work area. The two articulated bars are the connecting elements between the rotating tower and the link supporting the main boom.

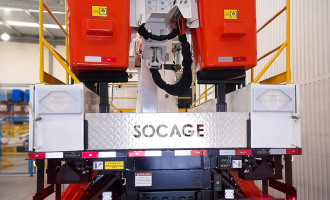

Operating boom

Telescopic boom in tubular design, with working area from -11° to +75° on a horizontal base. All hydraulic tubes are located inside the boom, so there are no external elements that can be damaged by impacts or collisions against obstacles during the various work phases. Access to them is facilitated through a window on the pantograph link.

Hydraulic leveling

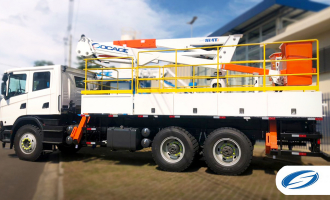

Basket leveling system using two hydraulic cylinders, master slave system with correction command in the basket and tower.

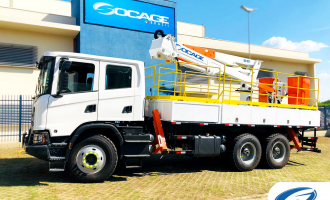

Operator Basket

Made of fiberglass with dimensions 0,7 x 0,7 x 1,1 m complete with insulating liner and steps for better access.

Controls

Basket with 2 hydraulic distributors for moving the equipment, an emergency hydraulic valve and a tool command with double pressure regulation, 175BAR on the machine and 140BAR on the tool. Tower with 5-way distributor and diverter/emergency control.

Control Panel

Radio system for starting and stopping, acceleration and deceleration.

STANDARD EQUIPMENT

caracteristiche tecniche

TECHNICAL CHARACTERISTICS

  • Maximum working height*: 18 metros
  • Basket base height*: 16,5 metros
  • Maximum lateral reach*: 10 metros
  • Basket Capacity: 2 x 136 Kg
  • Basket: Fiberglass
  • Insulation class: “C” 46kW – “B” 69kW
  • Proportional Hydraulic Control
  • 360° Tower Rotation (Infinite Rotation)
  • Basket Rotation 90º + 90º (OPTIONAL)
  • Front stabilizers: 4 x A
  • PTB mínimo: 13T
  • Color overhead: White RAL 9016 + Blue RAL 9005

(*) It depends on the vehicle where the assembly is carried out.

sicurezza

SECURITY DEVICES

  • Emergency stop buttons
  • Hand pump for emergency lowering
  • Flanged shut-off valves on all cylinders
  • Maximum pressure valves on hydraulic system
  • Thermal protections on the electrical system
  • Winches for safety belts in the basket
  • Remote controls in the vehicle’s on/off and accelerate/decelerate control basket
