Spider boom lift forSte 18S

Elevador da lança da aranha forSte 18S
max altura trabajo 1
MAX BASKET FLOOR HEIGHT

18,30 metros

rotacion torreta 2
TURRET ROTATION

700º

stabilizzatori
OUTRIGGERS

Z+Z

altura cesta 4
BASKET FLOOR HEIGHT

16,30 metros

dimensiones cesta 5
BASKET DIMENSIONS

140x70x110 cm

controles 6
CONTROLS

Electro-hydraulic

alcance lateral 7
MAX OUTREACH 8.20 m

8,20 metros

pma 9
GVW
2.5 ton
carga cesta 10
BASKET

230 kg

rotacion cesta 11
BASKET ROTATION

60º + 60º

DIMENSÕES
DIMENSIONS

2875 x 2865 milímetros

cabrestante 12
HOOK

230 kg

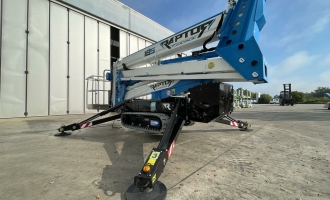

Compact and robust with great performance

N

Greater strength and stability

N

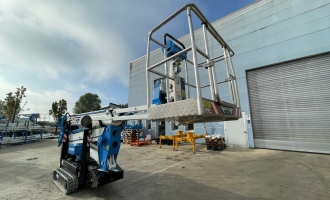

Simplicity and reliability

N

Bi-energy

N

Extendable tracks

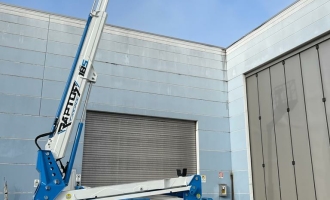

The forSte 18S is a tracked spider lifts with a maximum working height of 18.30 m and a maximum lateral outreach of 8.20 m.

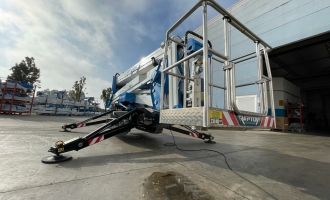

Its basket payload is 225 kg (2 operators + material) in the whole working area without any limitation. It is fitted with automatic stabilization and automatic closing, for an easy and safe use.
Sustainable platform of 0% emissions, bi-energy as standard, in addition to the diesel engine incorporates a 230V electric motor that allows working without emissions. Essential in some enclosed spaces such as churches, airports or factories.

The most compact in high performance aerial platforms

The forSte 18S has a reduced weight and dimensions. It is equipped with extendable tracks for better stability in the translation of the machine. It is fitted with white non-marking tracks designed for use in enclosed spaces. The translation of the tracks has three different speeds.
The rotation of the aerial part of 700º and the hydraulic jib next to the double articulated arm allow a wide work maneuverability. All this makes it one of the 18 m track lifting platforms with the best ratio between reduced dimensions and market performance.

STANDARD EQUIPMENT

caracteristiche tecniche

TECHNICAL CHARACTERISTICS

  • Crawler hydraulically exstensible
  • White antimark tracks
  • Electric hour-counter
  • Manual hand pump
  • 230V electric socket in the basket
  • Multifunction telecontrol
  • Auxiliary electric pump 230V-50Hz
  • Flanged holding valves
  • Diesel engine

Optional:

  • Trailer for tracked aerial platforms
  • Lifting hook with 230kg load capacity
