SOCAGE ForSte 13CADI Aerial Platform

Plataforma aérea SOCAGE ForSte 13CADI
max altura trabajo 1
MAX BASKET FLOOR HEIGHT

13,0 m

rotacion torreta 2
TURRET ROTATION

360º

stabilizzatori
OUTRIGGERS

2 x A

altura cesta 4
BASKET FLOOR HEIGHT

11,5 m

dimensiones cesta 5
BASKET DIMENSIONS

0,7 x 0,7 x 1,1 m

controles 6
CONTROLS

Hydraulic

alcance lateral 7
MAX OUTREACH

6,2 m

cesta 8
BASKET

Fiberglass

pma 9
GVW

5.000 kg

carga cesta 10
BASKET PAYLOAD

136 kg

rotacion cesta 11
BASKET ROTATION

cabrestante 12
WINCH

No

Designed, manufactured and tested to the highest standards

N

Connecting rod joint system

N

Horizontal base working area

N

Low cost of maintenance

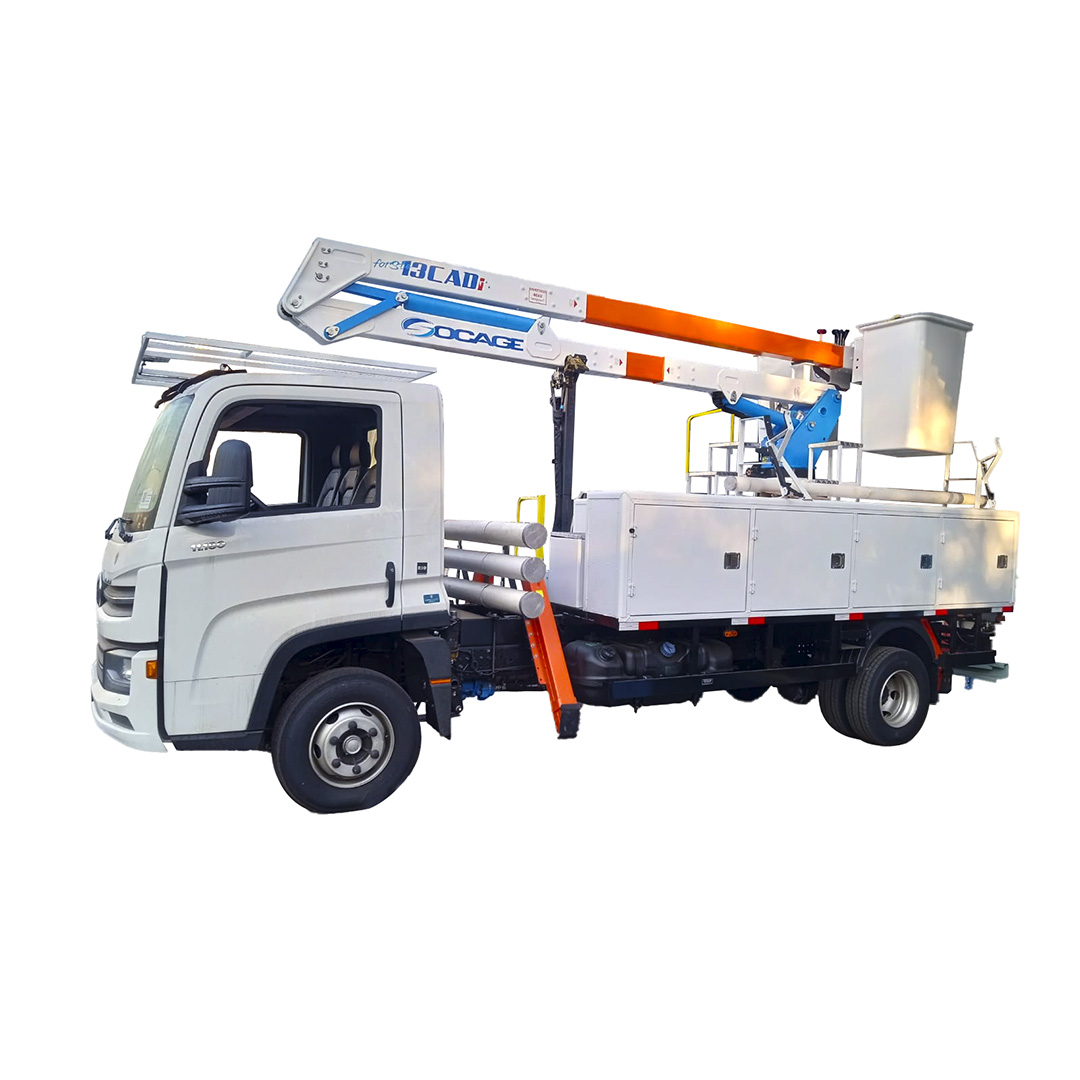

We present the SOCAGE ForSte 13CADI aerial platform, attached to the chassis of trucks weighing 5 tons or more. High quality steel structure. On the chassis is found the base that supports the structure.

Articulation system by connecting rods (power link), increasing the efficiency of work at height quickly and economically. Front stabilizers (optional) and type ‘A’ back stabilizers with 3.2 m of opening, which guarantees a better operational stability. 360° continuous wheel rotation system, with drive controls on the turret and basket with the best ergonomic position.

Operative boom

Plume in tubular ejection, with a horizontal base work area. All the hydraulic tubes are located inside the plume, as there are no external elements that could be damaged by impacts or collisions with obstacles during the different phases of work.

Leveling of the basket

System with insulated or insulated palo to level the basket.

Razing

Basket leveling system with the use of chains, considerably reducing the volume and maintenance cost.

Bribe

Placement of the basket made to facilitate access and eventual removals and cleaning.

STANDARD EQUIPMENT

caracteristiche tecniche

TECHNICAL CHARACTERISTICS

  • Maximum working height *: 13 meters
  • Height of the base of the basket *: 11.5 meters
  • Maximum lateral reach *: 6.2 meters
  • Basket Capacity 136 Kg
  • Type of fiberglass basket
  • 46KV insulation
  • Proportional hydraulic controls
  • 360° Tower Rotation
  • Basket rotation: 0 °
  • Rear stabilizers: A
  • PTB minimum: 5T
  • Aerial part of color: Blanco RAL 9016
  • 160 BAR working pressure

(*) It depends on the vehicle where the assembly is carried out.

caracteristiche tecniche

ISOLATION

  • Dielectric test carried out in a laboratory issued with a technical certificate
  • Insulated upper arm for high voltage work category “C” 46kV
  • Insulating coating with technical certificate
  • Electrical plumbing according to ANSI A92.2 and Brazilian standard NBR 16092
sicurezza

SECURITY AND EMERGENCY SYSTEMS

  • Security control for unauthorized operations in the basket.
  • Operation system in the aerial part and in the tower, with priority for the tower.
  • Hydraulic cylinders to lift the upper and lower arm equipped with check valves.
  • Automatic basket leveling system (rocker, chain, hydraulic, pantograph) or mixed system.
  • Stabilizer shoes, with double retention valves.
  • Security system that prevents the retraction of the stabilizers without retraction of the arms in the resting position (malla).
  • Landing point on the chassis.
  • Emergency system with hand pump.
  • Inclinometer (burbuja level).
  • Emergency system activated by hand pump.
