Articulated telescopic aerial platform ForSte 13,5 ATi

Plataforma aérea isolada ForSte 13,5 ATDI
max altura trabajo 1
MAX BASKET FLOOR HEIGHT

13,50 m

rotacion torreta 2
TURRET ROTATION

360º

stabilizzatori
OUTRIGGERS

2 x A

altura cesta 4
BASKET FLOOR HEIGHT

12,0 m

dimensiones cesta 5
BASKET DIMENSIONS

0,7 x 0,7 x 1,1 m

controles 6
CONTROLS

Hydraulic

alcance lateral 7
MAX OUTREACH

9 m

cesta 8
BASKET

Fiberglass

pma 9
GVW

5.000 kg

carga cesta 10
BASKET PAYLOAD

2 x 136 kg

rotacion cesta 11
BASKET ROTATION

90º + 90º (OPTIONAL)

cabrestante 12
WINCH

No

The best cost-benefit of the market

N

Security controls

N

Easy access to the basket

N

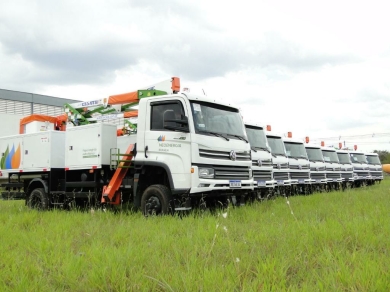

Compact design

SOCAGE ForSte 13.5ATi articulated telescopic aerial platform, for installation in vehicles from 5T of PBT.

With the following technical characteristics:

Arm Support Tower:



Produced in high-quality sheet steel, it is composed of a folded main body and electro-welded reinforcements. The rotation is given by a base set of European technology with hydraulic motor and infinite rotation.

Single pantograph bars group



The pantograph system allows for a reduction in the width of the installation, a better distribution of loads, which makes it possible to overcome intermediate obstacles between the equipment and the work area. The two articulated bars are the connecting elements between the rotating tower and the link supporting the main boom.

Operating boom



Telescopic boom in tubular design, with working area from -11° to +85° on a horizontal base. All hydraulic tubes are located inside the boom, so there are no external elements that can be damaged by impacts or collisions against obstacles during the various work phases. Access to them is facilitated through a window on the pantograph link.

Hydraulic leveling



Basket leveling system using two hydraulic cylinders, master slave system with correction command in the basket and tower.

Basket for Operators



Made of fiberglass with dimensions 0,7 x 0,7 x 1,1 mcomplete with insulating linear and steps for better access.

Commands



Basket with 2 hydraulic distributors for moving the equipment, an emergency hydraulic valve and a tool command with double pressure regulation, 175BAR on the machine and 140BAR on the tool. Tower with 5-way distributor and diverter/emergency control.

Control Panel



Radio system for starting and stopping, acceleration and deceleration.

STANDARD EQUIPMENT

caracteristiche tecniche

TECHNICAL CHARACTERISTICS

  • Maximum working height*: 13.5 meters
  • Basket base height*: 12 meters
  • Maximum lateral reach*: 8.5 meters
  • Basket Capacity: 136 Kg
  • Basket: Fiberglass
  • 46kW insulation
  • Proportional Hydraulic Control
  • 360° Tower Rotation (Infinite Rotation)
  • Basket Rotation 90º + 90º (OPTIONAL)
  • Previous stabilizers: 2 x A
  • PTB minimum: 5T
  • Color overhead: White RAL 9016 + Blue RAL 9005

(*) It depends on the vehicle where the assembly is carried out.

sicurezza

SECURITY DEVICES

  • Emergency stop buttons
  • Hand pump for emergency lowering
  • Flanged shut-off valves on all cylinders
  • Maximum pressure valves on hydraulic system
  • Thermal protections on the electrical system
  • Winches for safety belts in the basket
  • Remote controls in the vehicle’s on/off and accelerate/decelerate control basket
