Spider boom lifts forSte 21S

Elevador da lança da aranha forSte 21S
max altura trabajo 1
MAX BASKET FLOOR HEIGHT

20,80 m

rotacion torreta 2
TURRET ROTATION

700º

stabilizzatori
OUTRIGGERS

Z+Z

altura cesta 4
BASKET FLOOR HEIGHT

18,80 metros

dimensiones cesta 5
BASKET DIMENSIONS

140x70x110 cm

controles 6
CONTROLS

Electro-hydraulic

alcance lateral 7
MAX OUTREACH

10,30 metros

pma 9
GVW

2.6 ton

carga cesta 10
BASKET

230 kg

rotacion cesta 11
BASKET ROTATION

60º + 60º

DIMENSÕES
DIMENSIONS

2855 x 2850 mm

cabrestante 12
HOOK

230 kg

Compact and robust with great performance

N

Greater strength and stability

N

Simplicity and reliability

N

Bi-energy

N

Expansion basket

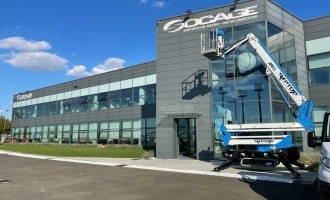

The forSte 21S is a spider boom lifts with a maximum working height of 20.80 m and a maximum lateral outreach of 10.30 m.

Its basket payload is 230 kg (2 operators + material) in the whole working area without any limitation. It is fitted with automatic stabilization and automatic closing.

This crawler platform is equipped as standard with a multifunctional remote control capable of allowing not only the movements of the aerial part, but also greater safety and comfort for the operator.

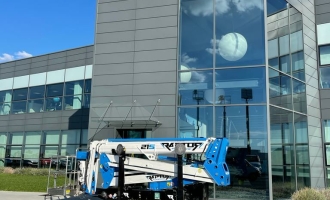

Versatility with Bi-energy

Sustainable platform of 0% emissions, bi-energy as standard, in addition to the diesel engine incorporates a 230V electric motor that allows working without emissions, essential in some enclosed spaces such as churches, airports or factories.

The towable boom lifts forSte 21S has a reduced weight and dimensions. It is equipped with extendable tracks and it is fitted with white non-marking tracks designed for use in enclosed spaces. The translation of the tracks has three different speeds.

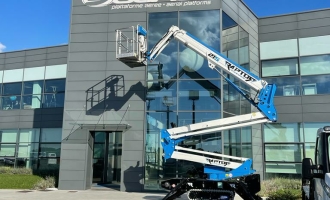

The rotation of the aerial part of 700º and the hydraulic jib next to the double articulated arm allow a wide work maneuverability.

STANDARD EQUIPMENT

caracteristiche tecniche

TECHNICAL CHARACTERISTICS

  • Crawler hydraulically exstensible

  • White antimark tracks

  • Electric hour-counter

  • Manual hand pump

  • 230V electric socket in the basket

  • Multifunction telecontrol

  • Auxiliary electric pump 230V-50Hz

  • Flanged holding valves

  • Diesel engine 14.96 CV/686 CC

Optional:

  • Trailer for tracked aerial platforms
  • Lifting hook with 230kg load capacity
