Aerial platform SOCAGE ForSte 13Ai

Plataforma aérea SOCAGE ForSte 13Ai
max altura trabajo 1
MAX BASKET FLOOR HEIGHT

13,0 m

rotacion torreta 2
TURRET ROTATION

360º

stabilizzatori
OUTRIGGERS

2 x A

altura cesta 4
BASKET FLOOR HEIGHT

11,5 m

dimensiones cesta 5
BASKET DIMENSIONS

0,7 x 0,7 x 1,1 m

controles 6
CONTROLS

Hydraulic

alcance lateral 7
MAX OUTREACH

6 m

cesta 8
BASKET

Fiberglass

pma 9
GVW

5.000 kg

carga cesta 10
BASKET PAYLOAD

136 kg

rotacion cesta 11
BASKET ROTATION

cabrestante 12
WINCH

No

Designed, manufactured and tested to the highest standards

N

High quality structure

N

Compact design

N

Easy maintenance

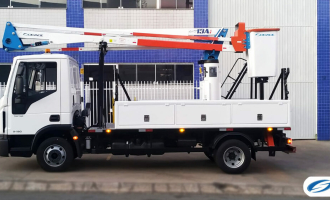

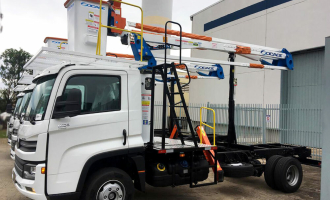

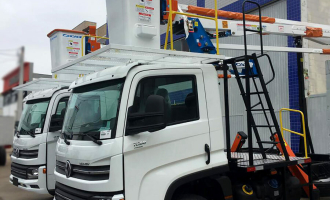

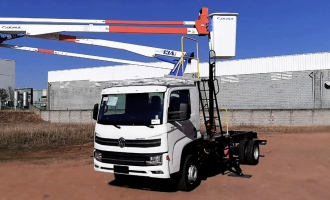

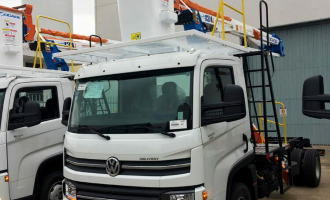

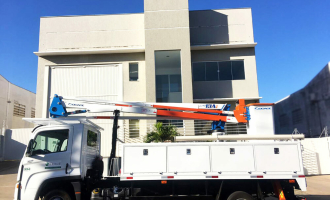

We present the proposal for the SOCAGE forSte 13Ai aerial platform, ixed to the chassis of trucks from 5 tons. High quality steel frame. Above the chassis is the base that supports the structure.

Simple pantograph bars group

The group allows the reduction of the installation width, a distribution of stabilizing loads allows to overcome intermediate obstacles between the equipment and the work area. The two articulated bars are the connecting elements between the rotating tower and the main telescopic boom.

Operational boom

Boom in tubular design, with working area from -5° to + 80° based on the horizontal. All hydraulic tubes are located inside the boom, so there are no external elements that can be damaged by impacts or collisions against obstacles during the various work phases.

Basket leveling

System with mechanical leveling bar, activated along with the articulated platform boom.

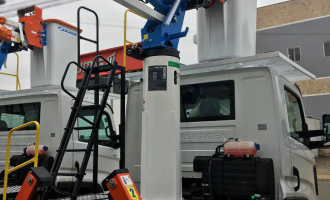

Hydraulic leveling

Basket leveling system without the use of chains, considerably reducing the volume and cost of maintenance.

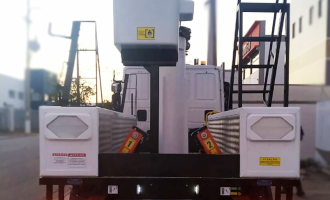

Basket Access

Manufactured basket positioning for ease of access and eventual rescues.

STANDARD EQUIPMENT

caracteristiche tecniche

TECHNICAL CHARACTERISTICS

  • Maximum working height *: 13 meters
  • Height of the base of the basket *: 11.5 meters
  • Maximum lateral reach*: 6 meters
  • Basket Capacity 136 Kg
  • Type of fiberglass basket
  • 46KV insulation
  • Proportional hydraulic controls
  • 360° Tower Rotation
  • Basket rotation: 0 °
  • Previous stabilizers: 2 x A
  • PTB minimum: 5T
  • Color overhead: White RAL 9016 + Blue RAL 9005

(*) It depends on the vehicle where the assembly is carried out.

sicurezza

SECURITY AND EMERGENCY SYSTEMS

  • Emergency stop buttons
  • Hand pump for emergency lowering
  • Commands
  • Flanged shut-off valves on all cylinders
  • Maximum pressure valves on hydraulic system
  • Thermal protections on the electrical system
  • Winches for safety belts in the basket
  • Remote controls, basket, engine start or stop and vehicle horn.
